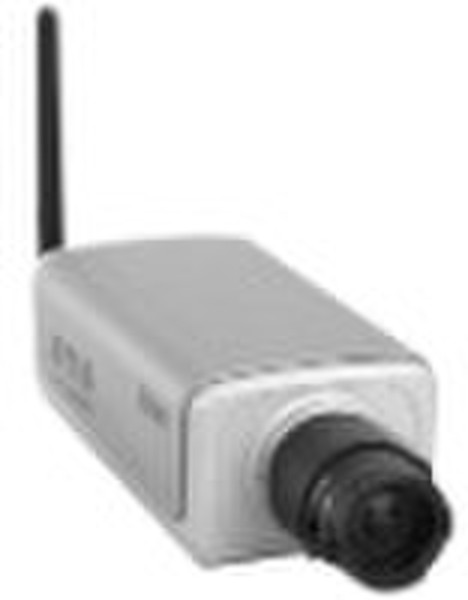

Megapixels IP Camera GSM-9800WH-MPC

GSM-9800H 2.0 Megapixels IP Camera Features:1. High performance SoC ARM9 processor: Hisilicon Hi3512 2. 2.0 Megapixel Micron CMOS progressive scanning sensor3. H.264 Main Profile@Level 3, realize transmission of High Definition video over low network bandwidth easily.4.Up to 30 frames per second in all resolutions ranging up to 1280x960 5. Up to 10 viewers can directly access the camera simultaneously 6. Built-in Web server enables the use of a standard Web browser for viewing and management7. Support 3G mobile wireless remote control and view ip camera8. Support remote software upgrade9. Support dynamic IP address , LAN, Internet (ADSL and Cable Modem) 10.Support protocals: RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP,DHCP, FTP,SNMP11.1ch Mic input and 1ch linear audio output.12.Auto-adjusting frame rate according to realtime network rate13.Alarm recording: video lost, motion detection and sensor alarm14.Provide RS485/RS232 serial port with several built-in high-speed domes and decoder protocols, supports transparent protocols.15.Auto-recovery after exception occurs or the network being reconnect Specifications: Item No.GSM-9800WH-MPCImage Sensor2.0 megapixelsVideo Standard Digital CCDScanning systems ProgressiveProcessor Hi3512Video Compression H.264 Main Profile@Level 3.0 / MJPEGDual Streaming SupportVideo Definition Primary Stream:1280x720Secondary Stream:640*320, 320*180Video Compression frame rate 1 25fps(other definitions) Secondary Stream:1 25fpsVideo Compression bit rate 32Kbit/S-16Mbit/SAudio Compression G.726Talkback Input 1 channel MIC interfaceAudio Output 1 channel Linear outputAlarm Input 1 channel input ,Normally Open/Normally Close modes adjustableRF Function OptionalTitle OSD Supports channel name, date, and video stream information overlay; OSD location is adjustableSD Card Interface Support Viedo storage and image snapping; SD2.0 standard, maximum storage 32G1 RS485 interfaceAudio Input1 channel on/off output, 120VAC 1A/24VDC 1AE-mail Based Alert SupportRTSPProtocols SupportFPT Protocols SupportMobile Monitor Supports smart mobile monitor that is based onWindows Mobile, Symbian andiPhone platformsWiFi NetworkLow-power WiFi: supports 802.11b/g protocol, 2.4GHZ, maximum wireless distance can be 100 metersHigh-power WiFi:supports 802.11a/b/g/n protocol, 2.4GHZ, maximum wireless distance can be 2 kilometersWireless Encryption Protocol Supports WEP,WPA,WPA23G Network Can build in EVDO/WCDMA/TD-SCDMA modulePOE Model OptionalPower Input DC12V/1.0A or DC12V/3.0A(refer to specific product model)Power Consumption 6 10W(refer to specific product model)
